Data Acquisition System
USB-3102
The USB-3100 Series features up to 16 analog outputs, 8 digital I/O, and one 32-bit counter input. Each channel is software-selectable for either a bipolar voltage output range of ±10 V or a unipolar range of 0 V to 10 V. Channel outputs can be updated individually or simultaneously. USB-3102 also features 0 mA to 20 mA of current output. Each DAC controls a voltage/current channel pair simultaneously. Each channel pair can be updated individually or simultaneously.

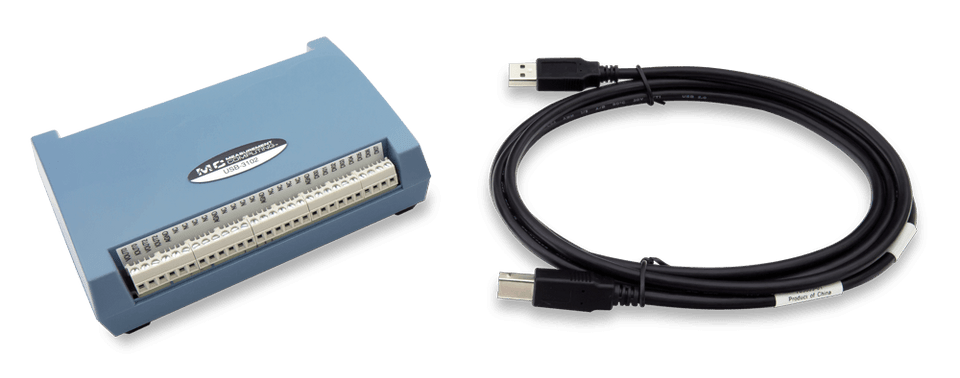

USB-3102
Type - Voltage and Current Output USB Devices
Other Features :
- 4, 8, or 16 analog outputs
- 16-bit resolution
- 100 S/s update rate
- Voltage output ±10 V, 0 V to 10 V. Current output 0 mA to 20 mA typ.
- Eight digital I/O
- One counter input
